Induction shrink-fitting
Induction shrink-fitting is where we use thermal expansion to either fit or remove parts.
Introduction
Our systems are used in the automotive industry to shrink-fit gears and rings. They are also employed to repair planes, trains and trucks. Our systems are used for shrink-fitting tasks on offshore platforms and are increasingly used to remove the giant nuts and bolts in the turbines of power stations.
- Process controllability, consistency and speed
- Accurate heat reduces the risk of ovality and is energy efficient
- Precise control of ramp-up times and holding temperatures
Ventac air-cooled induction heating system is ideal for shrink-fitting applications.
Image gallery
-
Ventac is a sustainable choice with its more than 97% efficiency – far better than any other air-cooled induction heating system.
-

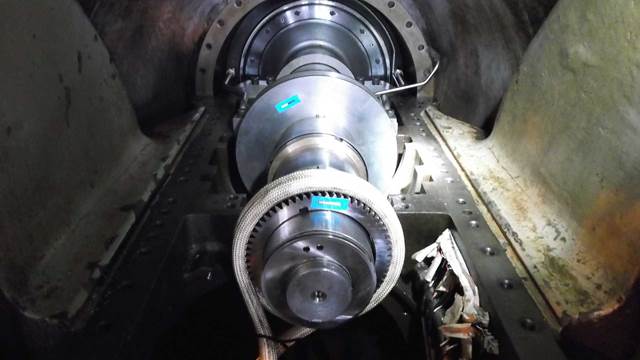

Shrink fitting with flexible cable
-
Disassembling and shrink-fitting bearing and lock rings.
-
Bearing rings can be heated in a completely uniform manner and removed while the shaft remains cold.
-
The innovative ENRX shrink-fitting system can heat any size of motor housing for electrical motors and pumps.
-
More and more automotive sub-contractors are opting for induction heating to shrink-fit gear wheels
-
Induction heating used for changing the shafts of an old bridge
-
Disassembling and assembling of bearing rings at a railway repair shop.
-
Manual solution for shrink-fitting of motor house
-
Motor house: A fully automated system with robot handling.
-
Motor house: A semi-automated system with manual loading and unloading.
-
ENRX has delivered numerous solutions for shrink-fitting of stator housings.
-
Shrink-fitting of main shaft bearings and sleeve rings.
-
Shrink-fitting of rotor shaft and motor-housing
-
An operator replaces a bearing that has been heated with an ENRX mobile Minac system
